故障说明
环境中集成了ZUN，但是docker容器和虚拟机在绑定浮动ip后网络都不通。

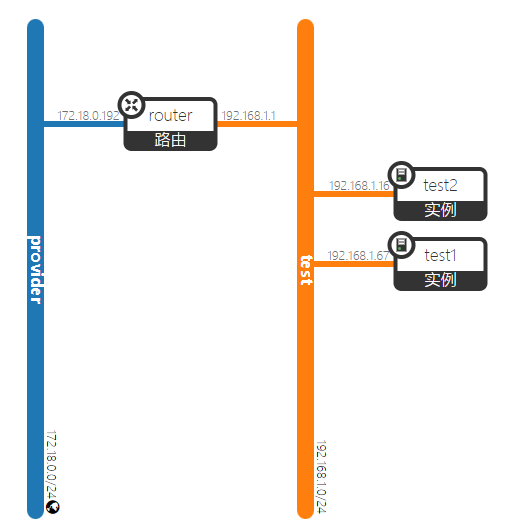

网络拓扑情况如下：
该主机为192.168.1.16，绑定了浮动ip,172.18.0.162，但是无法访问外部网络。逐一排查各个网段，测试发现可以Ping通192.168.1.1和172.18.0.192。
因此怀疑是router处和外部网络无法连通。排查router连接情况。
root@controller:/home/ubuntu# source /home/ubuntu/admin-openrc
root@controller:/home/ubuntu# openstack router list
+--------------------------------------+--------+--------+-------+----------------------------------+-------------+-------+
| ID | Name | Status | State | Project | Distributed | HA |
+--------------------------------------+--------+--------+-------+----------------------------------+-------------+-------+
| bffc6841-bbd2-4b39-b5b0-a877f20f5fa4 | router | ACTIVE | UP | 3c0e7cfc3c604ca795cc6d370f785ce7 | False | False |
+--------------------------------------+--------+--------+-------+----------------------------------+-------------+-------+
root@controller:/home/ubuntu# ip netns
qdhcp-4e358a61-315a-46dd-9447-3d088de1aced (id: 1)
qdhcp-1fae90a3-41e5-4cb6-87cd-201dc179dc51 (id: 2)
qrouter-bffc6841-bbd2-4b39-b5b0-a877f20f5fa4 (id: 0)
root@controller:/home/ubuntu# ip netns exec qrouter-bffc6841-bbd2-4b39-b5b0-a877f20f5fa4 ping 114.114.114.114
PING 114.114.114.114 (114.114.114.114) 56(84) bytes of data.
From 172.18.0.192 icmp_seq=1 Destination Host Unreachable
From 172.18.0.192 icmp_seq=2 Destination Host Unreachable
From 172.18.0.192 icmp_seq=3 Destination Host Unreachable
^C
--- 114.114.114.114 ping statistics ---
4 packets transmitted, 0 received, +3 errors, 100% packet loss, time 3076ms
可以看的，从router的net namespace也无法连通外部网络。检查router上的虚拟网卡绑定情况和路由。
root@controller:/home/ubuntu# ip netns exec qrouter-bffc6841-bbd2-4b39-b5b0-a877f20f5fa4 ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: qr-eb23ae92-d0@if7: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
link/ether fa:16:3e:9d:22:c5 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 192.168.1.1/24 brd 192.168.1.255 scope global qr-eb23ae92-d0
valid_lft forever preferred_lft forever
inet6 fe80::f816:3eff:fe9d:22c5/64 scope link
valid_lft forever preferred_lft forever
3: qg-57ae9e7b-53@if8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
link/ether fa:16:3e:4d:8b:7b brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 172.18.0.192/24 brd 172.18.0.255 scope global qg-57ae9e7b-53
valid_lft forever preferred_lft forever
inet 172.18.0.161/32 brd 172.18.0.161 scope global qg-57ae9e7b-53
valid_lft forever preferred_lft forever
inet 172.18.0.162/32 brd 172.18.0.162 scope global qg-57ae9e7b-53
valid_lft forever preferred_lft forever
inet6 fe80::f816:3eff:fe4d:8b7b/64 scope link
valid_lft forever preferred_lft forever
root@controller:/home/ubuntu# ip netns exec qrouter-bffc6841-bbd2-4b39-b5b0-a877f20f5fa4 ip route
default via 172.18.0.254 dev qg-57ae9e7b-53 proto static
172.18.0.0/24 dev qg-57ae9e7b-53 proto kernel scope link src 172.18.0.192
192.168.1.0/24 dev qr-eb23ae92-d0 proto kernel scope link src 192.168.1.1
可以看到虚拟网卡qg-57ae9e7b-53对应内部的浮动ip网卡所在，默认路由也是通过这个qg-57ae9e7b-53网卡在访问外部网络。因此可能是这个tuntap网卡有问题，这里环境安装的是openstack 基于linuxbridge版本的，因此查看bridge的连接情况。
root@controller:/home/ubuntu# brctl show
bridge name bridge id STP enabled interfaces
brq1fae90a3-41 8000.facf268f5372 no tap2e36c85e-e9
tapeb23ae92-d0
vxlan-4464
brq4e358a61-31 8000.4a023181b109 no tap57ae9e7b-53
tapaeb2adac-74
vxlan-1001
可以看到qg-57ae9e7b-53对应的tap57ae9e7b-53绑定在了brq4e358a61-31网桥上，但是该网桥上并没有可以和外部网络联通的网卡，因此手工添加provider网卡至该网桥。
root@controller:/home/ubuntu# brctl addif brq4e358a61-31 ens160
root@controller:/home/ubuntu# brctl show
bridge name bridge id STP enabled interfaces
brq1fae90a3-41 8000.facf268f5372 no tap2e36c85e-e9
tapeb23ae92-d0
vxlan-4464
brq4e358a61-31 8000.4a023181b109 no ens160
tap57ae9e7b-53
tapaeb2adac-74
vxlan-1001
此时虚拟机内网络接入外部网络。
